Turbo Charger compatible for Ford Escape 2017-2019 Fusion 2014-2020 L4 1.5L B0BG DS7Z6K682A
Applications:
Compatible for Ford Fusion L4 1.5L Turbocharged B0BG 2014-2020
Compatible for Ford Escape L4 1.5L Turbocharged B0BG 2017-2019
Replacement & Part Number:
1816470, 2117134, 1946977,
1832241, 2275932, 2434631,
F1FG6K682Compatible for AC, F1FG-6K682-Compatible for AC,
F1FZ6K682D, F1FZ-6K682-D,
F1FZ6K683D, F1FZ-6K683-D,
F1FG6K682AA, F1FZ6K682A, DS7Z6K682B,
F1FG6K682AB, F1FZ6K682C, DS7Z6K682A,
F1FG6K682AD, F1FZ6K682E, DS7G6K682DB,
DS7G6K682CA, F1FG6K682BA, DS7G6K682EA,
1639 988 0003, 1639 988 0006, 1639 988 0000,
Specification:
Turbo Model: B0BG
Engine Code: SGDI ECO-Boost
Cooling Type: Water+Oil Cooling
Fuel Type: Gas
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 Degrees
Universal Fitment: No
Finish: Matte
Actuator Type: Vacuum Actuator
Turbo Type: Individual
Condition: 100% Brand New

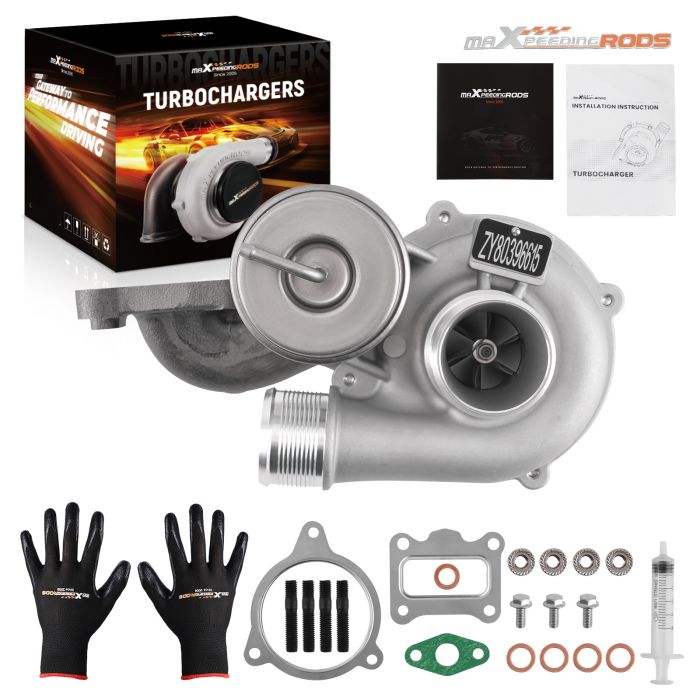

Accessories: You will get what you can see in the pictures exactly
Package Size: 31*28*24 cm
Package Weight: 7 kg
Package included:
1x Turbocharger
2x Oil gaskets
2x Gaskets
1x Manual
1x Brochure
1x Sticker
Features:
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Features
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
