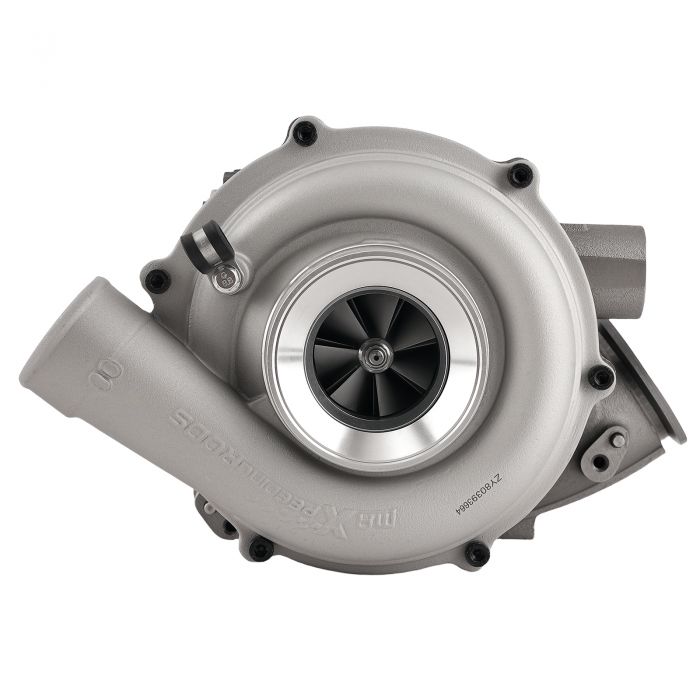

Turbo +Electronic Actuator compatible for Ford F250 F350 6.0L Powerstroke Super Duty 05 -07

SKU

300200011456

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Ford F-250, F-350 Truck Super Duty 6.0L Engine 2005-2007

OE/Part number

743250-5013, 7432505013S, 743250-5013S,
743250-0014，743250-5014S，743250-5014,
743250-0004, 743250-5004S，7432509004, 743250-9004,
743250-0002, 743250-5002S，743250-0001，
743250-0005, 743250-5005，743250-9005,
743250-0016，743250-5016，743250-9016
743250-0021，743250-5021，743250-9021，
170025-0109,
1877831C93, 1879413C94, 1879413C92, 1879413C93, 1877832C93,
1877832C91, 1877832C92, 1832255C91, 1832255C92,
1877834C91, 1876493C91, 1877831C91, 1877834C91, 1879413C91,
1854480C91,1854480C91,1845178C98,
1845178C95,1854593C91,1854593C92,1854593C94,
1832159C91, 1843761C93, 1843761C94,
1845322C91, 1846765C91, 1846767C91, 1882379C2,
1858116C91,1882380C1,100211R,
5010147R93, 5010399R91, 5010422R91,
4C3Z6K682CB, 4C3Z6K682CBRM，4C3Z6K682CCRM,
5C3Z6K682AA, 5C3Z6K682A, 5C3Z6K682DA, 5C3Z6K682CA ,
5C3Z6K682CCRM, 5C3Z6K682CARM

Specification

Turbo Model: GT3782VAS, GT3782VA
Engine: Power stroke
Cooling Type：Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 242KW/325HP
Actuator Type: Electronic Actuator
Turbo Type: Individual/VNT
Universal Fitment: No
Finish:Matte
Condition: Brand New
Package Size: 35*34*38.5 cm
Package Weight: 19900g
Accessories: You will receive the parts exactly as shown in the picture above.

Package included

1 x Turbocharger
1 x Manual
1 x Brochure
1 x Sticker

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
