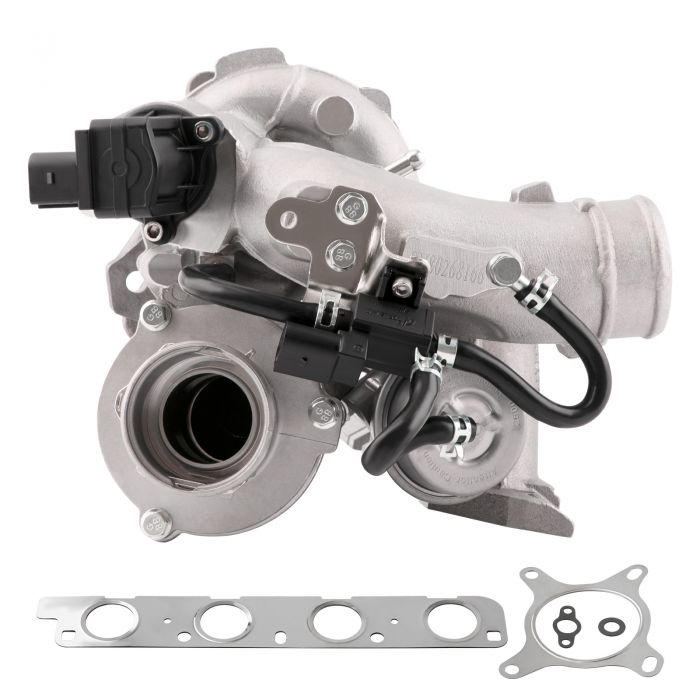

Turbo Turbocharger compatible for Volkswagen Passat B6 2.0L TSI 2005-2010 Eos 2.0 TFSI 2005
Application:
Compatible for Audi A3 2.0L TFSI (8P/PA) Engine AXX 2003-2012
Compatible for Audi TT 2.0L TFSI (8J) Engine BWA - BPY 2006
Compatible for Seat Leon 2.0L TFSI Engine BWA - BPY 2005-2009
Compatible for Seat Seat Toledo III 2.0 TFSI Engine BWA - BPY 2006-2009
Compatible for Skoda Octavia II 2.0L TSI Engine BWA - BPY 2005-2013
Compatible for Volkswagen Eos 2.0L TFSI Engine BWA - BPY 2005
Compatible for Volkswagen Jetta V 2.0L TFSI Engine BWA - BPY 2005-2010
Compatible for Volkswagen Golf, Jetta V 2.0L TFSI 2004-2009
Compatible for Volkswagen Passat B6 2.0L TSI 2005-2010
Turbo OEM Number / Part Number:
53039880105, 5303-988-0105, 5303 988 0105,
53039880086, 5303-988-0086, 5303 988 0086,
53039700086, 5303-970-0086, 5303 970 0086,
53039700105, 5303-970-0105, 5303 970 0105,
06F145701B, 06F145701BV, 06F145701BX,
06F145701C, 06F145701CV, 06F145701CX,
06F145701D, 06F145701DV, 06F145701DX,
06F145701E, 06F145701EV, 06F145701EX,
06F145701F, 06F145701FV, 06F145701FX,
06F145701G, 06F145701GV, 06F145701GX,
06F145701H, 06F145701HV, 06F145701HX,
Specification
Turbo Model: K03
Engine Code: BWA-BPY, TFSI quer/transversal
Cooling Type: Water+Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 Degrees
Horse Power: 147KW/200PS
Actuator Type: Electronic Actuator
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 49x 31 x 24 cm
Package Weight: 13060 g
Feature
* Product Material
1. Turbine housing : Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Notice:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
