Compatible for Nissan Safari compatible for Patrol GQ GU Y60 TD42 4.2L TD TurbochargerandTurbo
Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).
Introduction
A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Maximum PSI 18（1.2Bar）
Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 73
Turbine Inducer Diameter: 65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 55
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes
Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year warranty for any manufacturing defect

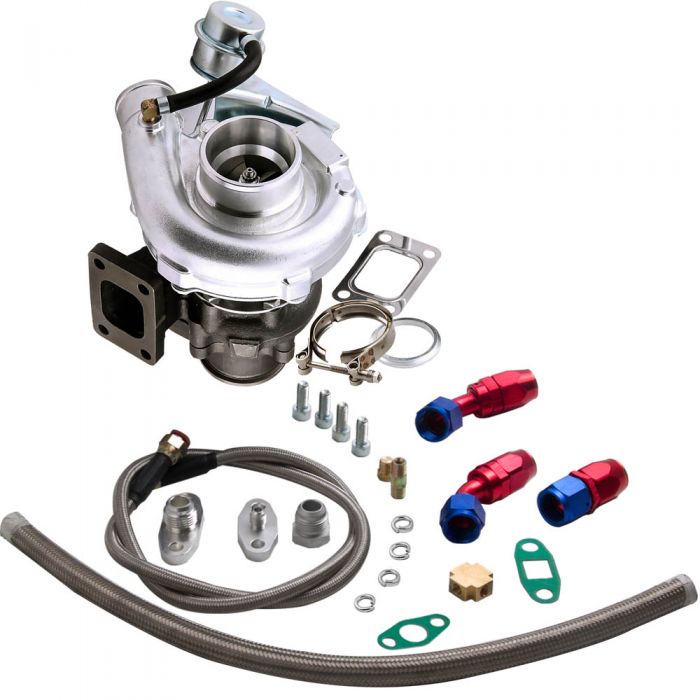

Accessories: You will get exactly as shown in the picture above
Features
- Universal turbochargers.
- High temperature resistance.
- Turbine-driven forced induction device.
- Enhance engine power and reduce energy consumption.
- Improve fuel economy and reduce exhaust emissions.
Notice
* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Please check our store for other auto parts you may be interested in.
* No instruction included; Professional installation and alignment suggested.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
