Turbocharger Turbo compatible for Cummins 4BT 4BTA New Holland 3.9L Engine Trucks 90HP 98-

SKU

3002922512

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Case New Holland compatible for Cummins 4BT 4BTA 3.9L Engine Trucks 1998-

OE/Part number

3592109, 2837303, 2843653, 3537886,
3537887, 3537888, 3537889, 3538249,
3538308, 3591365, 3592110, 3592110H,
3592111, 3592112, 3592113, 3802848
3802908, 380290800, 3802908NX, 3802908RX,
J592109, J592110, J592111, J592112,
J592113, J802908, JC537886, JR802908

Specification

Turbo Model: HX30
Engine Code: 4BTA
Cooling Type: Oil Cooling
Fuel Type: Diesel

Bearing Type: Journal Bearing / Floating Bearing
Horse Power: 90 HP
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 29*27*23cm
Package Weight: 9.74kg

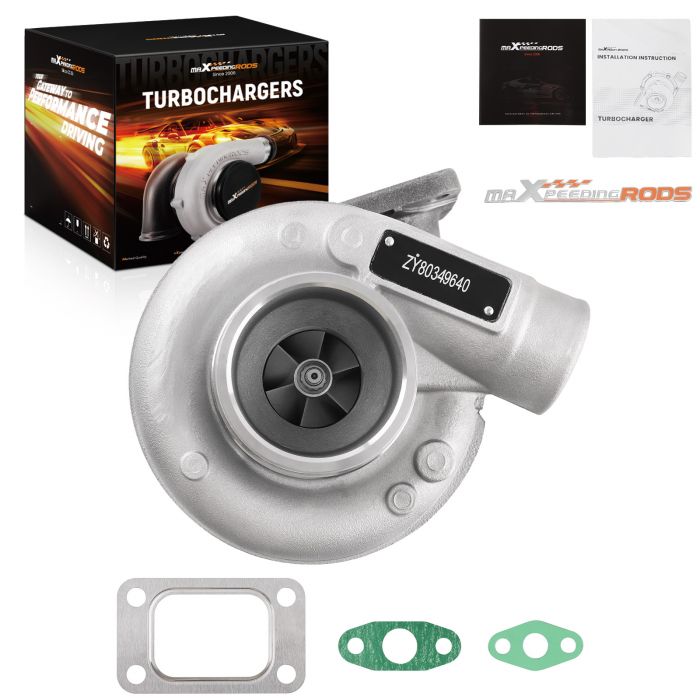

Package included

1x Turbocharger
2x Oil gaskets
1x Flange Gasket
1x Manual
1x Brochure
1x Sticker

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
