Universal T70 Turbo Oil Feed Drain Line Kit T3 Flange 500HP For 2.0-3.0L Engine

SKU

3002915952

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

T70 .70 A/R Turbocharger Up to 500HP+Oil Feed Line+Turbo Oil Drain Return Complete Kits

1. About T70 Turbo

Application for :

Universal for Turbo Manifold with T3 Flange. Perfect for all 2.0L-3.0L engines.

Compressor Size:

* Trim: 57

* Inducer Diameter: 56.6 mm

* Exducer Diameter: 75 mm

* A/R: 0.7

Turbine Size:

* Exhaust Inlet Flange: T3 Twin Scroll Flange
* Exhaust Outlet Flange: 2.5'' V Band Flange
*Turbine exhaust outlet : 79.8 mm(OD) / 63 mm(ID)
* Trim: 61.6
* Inducer Diameter: 74.4 mm
* Exducer Diameter: 58.4 mm
* A/R: 0.7

Cooling Type: Oil Cooled
Horse Power: up to 500HP
Bearing Type: Floating Bearing
Thrust Bearing: 270 Degrees
Turbo Type: Twin-Scroll
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Wastegate: W/O Wastegate
Condition: 100% Brand New

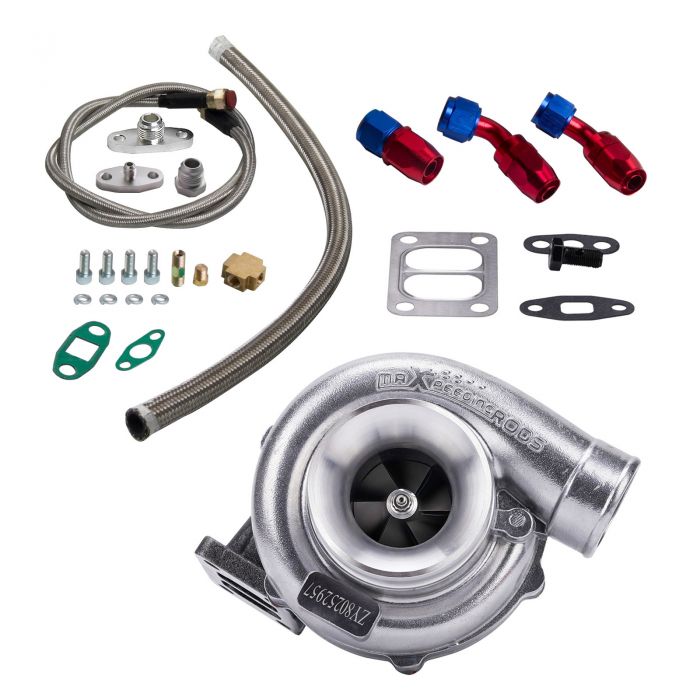

Accessories: You will get exactly as shown in the picture above
Package Size: 25*24*23cm
Package Weight: 9560g

2. About Oil Feed Line+Turbo Oil Drain Return Complete Kits

Fit For Most Turbos:
T3, T3/T4, T4, T04, GT32, GT40, GT42, GT4088R, GT4049R, GT42R/RS, GT4294R, GT4202R, T61, T66, T70

Specification:

* OIL RETURN LINE : Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE : Length: 1000mm || Inner Diameter: 14mm

Features:
Easy to install and apply
Complete kit for oil feed and drain return lines.Gasket,screws,washer all fittings are made with hight quality aluminum.
help circulate oil from the turbocharger to the oil pan
The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.

NOTE:

* Professional installation is highly recommended

* For any needs please contact us
