Upgraded Billet Wheel Turbo GT30 GT3037 GT3076 A/R 0.82 T3 Turbine Up to 500BHP

Application

Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Specification

Exhaust Inlet Flange: Standard T3 Flange
Exhaust Outlet Flange: V-Band
Turbine Side:
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Side:
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R:0.6

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil Cooled
Wastegate：Without Wastegate
Bearing: Journal Bearing
Thrust bearing: 270 Degrees
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 9800g

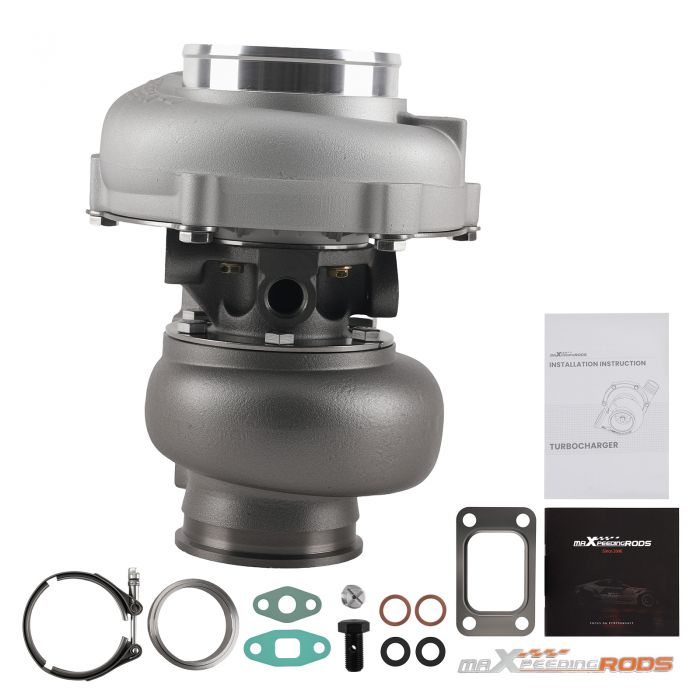

Package included

1x Turbocharger
1x Flange gasket
4x Oil/Water port gaskets
1x V-Band flange adapter ring & Clamp
1x Oil restrictor
1x Manual
1x Brochure
1x Sticker

Feature

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Whee: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
5. Appearance upgrade
（1）Turbine outlet V-BAND: Easy installation
（2）New compressor wheel design

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
