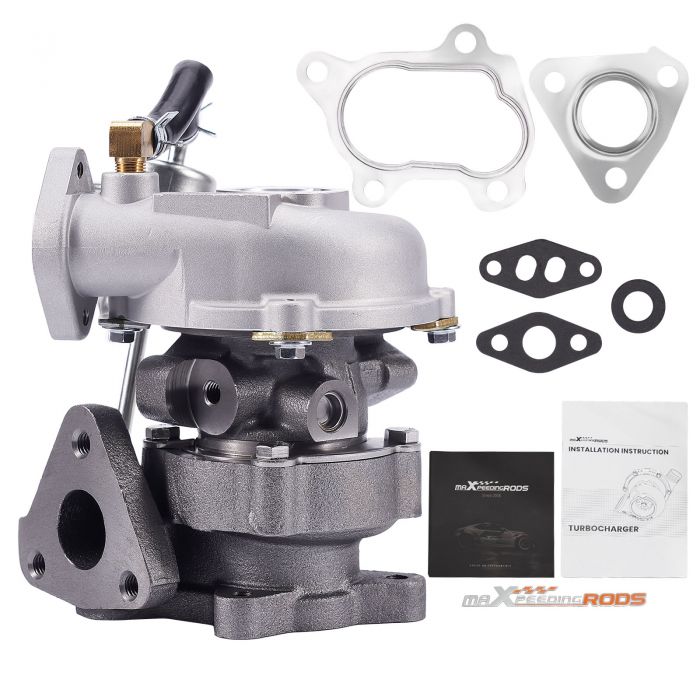

VZ21 Turbocharger Turbo for Small Engines Snowmobiles Motorcycle ATV RHB31
SKU
3002917040
<div><b>Application</b></div><div>Compatible For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP，</div><div>Compatible For Suzuki ALTO Works with YA1 F6AT Engine，</div><div>Compatible For Suzuki ALTO Works with 21R707-0011-G1 Engine</div><div><b><br></b></div><div><b>OE/Part number</b></div><div>VZ21,13900-62D51, 1390062D51, </div><div>1390062D50, 13900-62D50，VE110069</div><div><br></div><div><b>Specification</b></div><div>Turbo Model ：RHB31</div><div>Engine ：YA1, F6AT, compatible for Isuzu 4TNA，21R707-0011-G1 Engine</div><div>Cooled Type: water and oil cooled</div><div>Bearing Type: Journal Bearing</div><div>Thrust Bearings: 360 Degrees</div><div>Fit for ：500 cc to about 1000cc</div><div>Internal-wastegate: 15psi </div><div>Horse Power: 23-100HP </div><div>Compressor Exducer: 37.1mm</div><div>Compressor Inducer: 24.2 mm</div><div>Compressor Trim: 42.5</div><div>Compressor A/R: 0.7</div><div>Turbine Inducer: 35mm</div><div>Turbine Exducerr:26.7mm</div><div>Turbine Trim: 58.2</div><div>Turbo Type: Individual</div><div>Universal Fitment: Yes</div><div>Finish: no</div><div>Condition: Brand New</div><div>Package Size:26x 25 x 23 cm</div><div>Package Weight: 3400g</div><div>Accessories: You will receive the parts exactly as shown in the picture above</div><div>Warranty: one year for any manufacturing defect</div><div><br></div><div><b>Package Included</b></div><div>1 xTurbocharger</div><div>2 x Flange gaskets</div><div>3 x Oil feed/drain gaskets</div><div>1 x Manual</div><div>1 x Brochure</div><div>1 x Sticker</div><div><br></div><div><b>Features</b></div><div>*Product Material</div><div>1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃</div><div>2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃</div><div>3. Compressor housing：ZL104 aluminum with lightweight </div><div>4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance</div><div>*Product Performance</div><div>1. Cost-effective turbo increase 20-40% power for your car</div><div>2. Rich self-production experience with own factory</div><div>3. High-Speed oil seal ring and Precision clearance</div><div>4. Built for durability and strength</div><div>* Technology Advantage: </div><div>1. 100% balancing Test by TURBOTECHNICS VSR3</div><div>2. G3-min-Flow VNT Turbo testing</div><div>3. Advanced Actuator Tester/Programmer</div><div><br></div><div><b>Note</b></div><div>* Please confirm your original turbo PART NUMBER before Purchasing</div><div>* Professional installation is highly recommended </div><div>*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!</div>
