Weld On Triangulated 4 Link 2500 Bags Air Ride Suspension Kit Brackets 24 Bars

Application

for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;
Compatible for Ford F150/F250, compatible for GMC Sierra；
Compatible for Chevrolet Silverado;
Compatible for Dodge Ram 1500 2500 3500, etc;
for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.

Specification

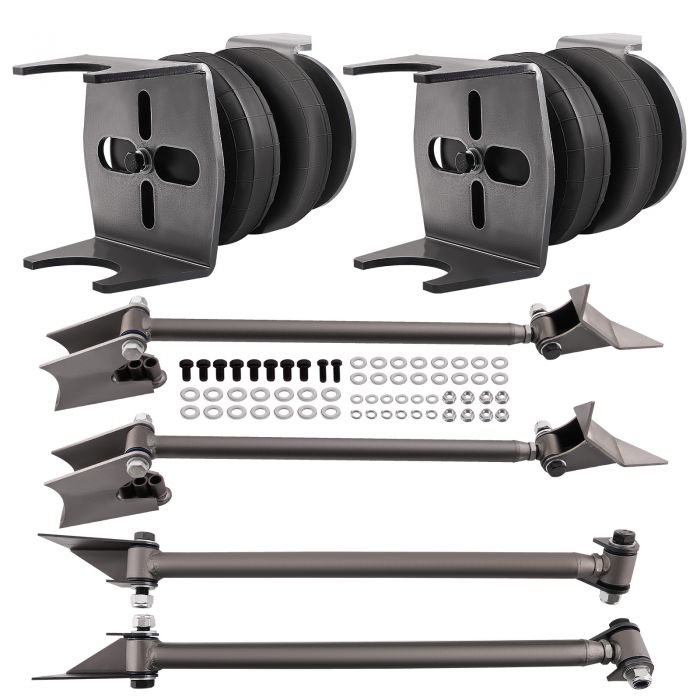

Package Includes:
4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel, Weld-On Triangulated Frame Mounts
2 x Steel, Weld-On Lower Axle Tube Mounts
4 x Steel, Weld-On Center Link Axle Mounts
2 x Steel, Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2x Standard 2500 Single 1/2"npt Port air spring bags

4 Link Bar Dimensions:
Tubing Outside Diameter :1.25"
Tubing Thick Wall :156"
All Four Bars :24.00"
(Center To Center Adjusted All The Way In)
Specs of bag:
Diameter: 6"
Extended:8"
Closed:2.75"
Air spring bag capacity: 2500LBS
2 smaller bolt holes diameter: 0.3"
1 bigger bolt hole diameter: 1/2"-14NPT
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5、Use high-quality steel with high load-bearing capacity and long life.
6、Excellent and practical bolt-on installation.
7、Safe carrying capacity and stability
8、Restore the original ride height and improve ride quality
9、Ensure our driving comfort and reduce tire wear.

Note

Instructions Are Not Included
We Recommend Professional Installation
Please feel free to contact for whatever we can help!
