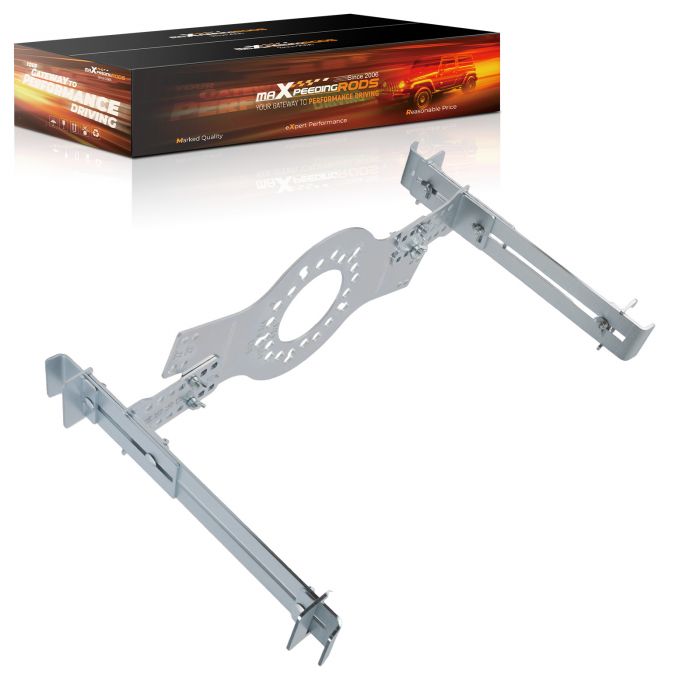

Wheel Fitment Testing Tool Tire Size Fit Test Measuring Mockup 5-Lug Pattern

Introduction

This wheel fitment simulator tool is installed inside the tire and can simulate whether a fixed offset hub will fit into our car or measure the appropriate offset so that a new or custom hub can be ordered.
Positive offset hubs are commonly used in front-drive and partially rear-drive models. Negative offset wheels are commonly used in suvs, premium sedans and sports cars. The wrong offset can cause the hub to interfere with the brake caliper, suspension, or body.

Application

5-lug wheel bolt pattern fitments include 5x4.5, 5x4.75, 5x5, and 5x5.5

Dimension

Tool supports 14 to 22 inch wheel diameters and 7 to 17 inch wheel widths
